The router with more performance.

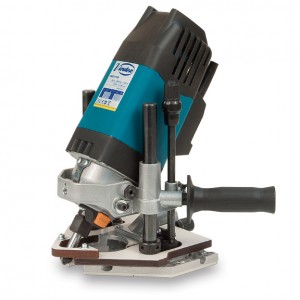

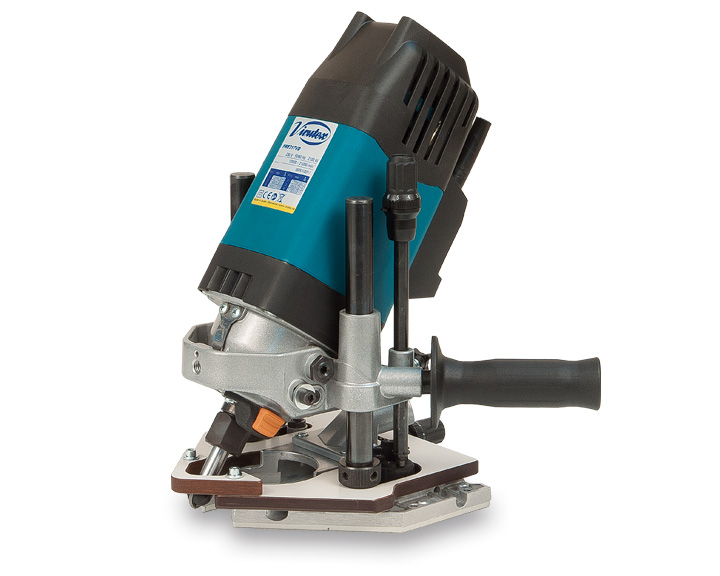

Professional router for wood and solid surface materials. Specially designed for installing or repairing Corian®. Its features make the FRE317VD the perfect machine for the Corian® installation.Exclusivity. The only tiltable router.Powerful motor (2100 W) with electronic speed control from 11500 to 23000/min. Routing depth: 100 mm.Equipped with an additional base for working with Corian®. It is also possible to use copying guide rings. The routing base allows to work with copying guide rings.
Exclusivity:
Equipped with a gaz buffer for the vertical movement, for the routing of joints on Corian® worktops.
Big support surface for trimming works on edges.Cutting depth with micrometric adjustment.
Adjustable stopper with 6 routing depth positions.
| Input power: | 2100 W |
| No-load speed: | 11.500-23.000 /min |
| Chuck collet: | 12 mm |
| Max. bit diameter: | 61 mm |
| Routing depth: | 0-100 mm |
| Weight: | 5,5 Kg |
Bit for rims r. 10 mm HM, slotting bit d.10 mm HM, lateral fence, chuck collet reducers 12-10, 12-8 & 12-6 mm, guide ring Ø ext. 30 mm, wrench e/c 3 mm, wrench e/c 5 mm, wrench e/c 13 mm, wrench e/c 24 mm, locking rod D. 6, dust collection cover for trimming radius, dust collection connector 2.25 m with clamps, bit protection and carrying case.

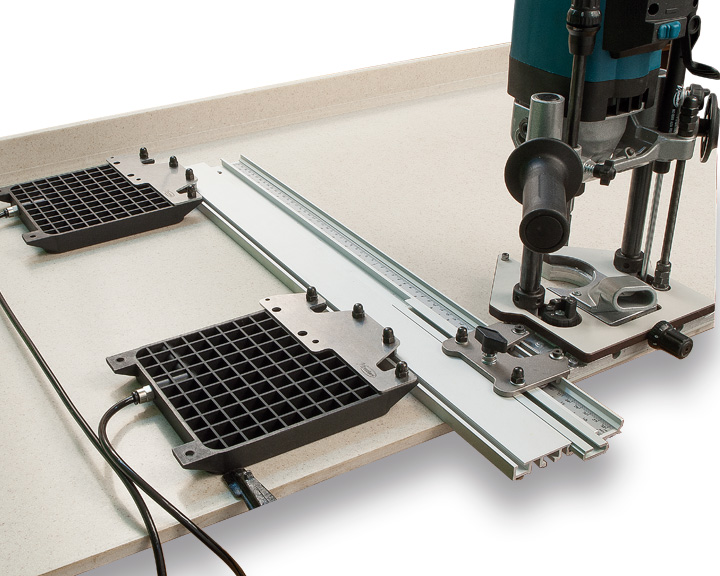

Pneumatic cutting guide UFN317 (ref. 1746846)
Cutting guide with manual suction pads UF317 (ref. 1745838)
For a guided routing. Allows a stable and perfect finishing on repairing works.
Set of suction pads (ref. 6045756)
For fixing the machine when drilling holes or caps on Corian® worktops.
Pneumatic clamping device ASUN317 (ref. 1746804)
Allows a solid and stable fixing when gluing two panels in horizontal position.
Clamping devise ASU317 (ref. 1745927)
Allows a solid and stable fixing when gluing two panels in horizontal position. With manual suction pads.
Pneumatic elastic clamping device ATUN317 (ref. 1746805)
Allows to fix two panels at a different angle, when gluing them.
Elastic clamping device ATU317 (ref. 1745928)
Allows to fix two panels at a different angle, when gluing them. With manual suction pads.
Routing guide UC317 (ref. 1746254)
For routing in an easy way the gutters on solid surface worktops. Length, depth and inclination are adjustable.
Rail guide long. 1.40 m (ref. 9045754)
Rail guide long. 2.40 m (ref. 9045755)
Jointing kit for 2 guides
Set of 2 clamp screws (ref. 6045710)
